GC 7890 Transformer Oil test Equipment

: ~~暂无价格~~

商品說明

The gas chromatograph in transformer oil adopts a three-detector process of single injection, double-column parallel, with TCD detector and two FID detectors, in which H2 and O2 are detected by TCD. Hydrocarbon gases (methane, ethylene, ethane, acetylene) are detected by FID1, and CO and CO2 are detected by FID2, overcoming the influence of CO and CO2 on hydrocarbon gases, especially the influence of acetylene, and the detection limit of acetylene can reach 0.05ppm.

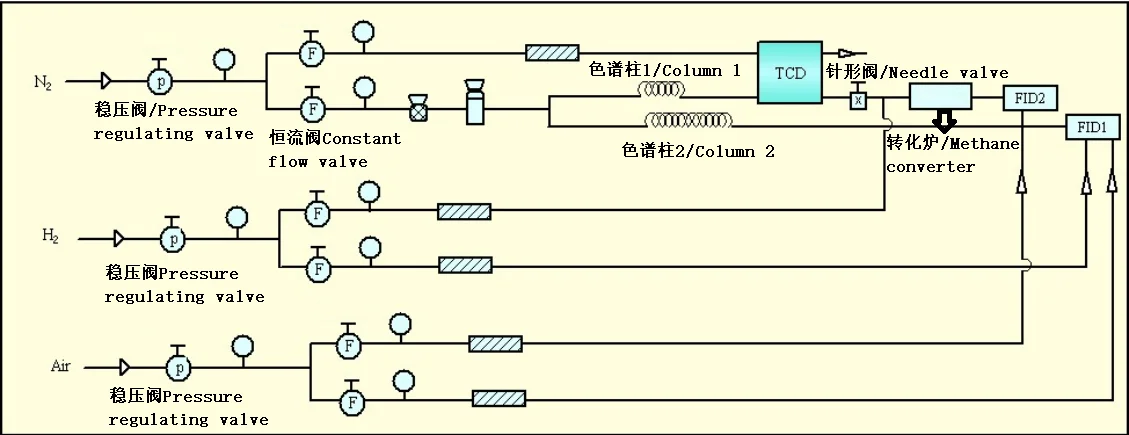

Flow chart:

Other attributes

Customized support	OEM
Place of Origin	Anhui, China
Brand Name	Gootrol
Model Number	GC 7890
Operation display	7-inch touchscreen display
Temperature range	Above room temperature 8 ℃ ~ 450 ℃
Accuracy	± 0.1 ℃
Incremental	1 ℃
Cheng Sheng Rate	0.1~40℃/min
Number Of Detector	3; double FID, TCD
Temperature control area	10 channels for temperature control
Hydrogen Flame Ionization Detector (FID)
Detection limit	Mt<5x10-12g/s
Noise	≤5x10-14A
Baseline drift	≤1x10-13A/30min
Linear range	≥106
Ignition mode	automatic ignition
Thermal Conductivity Detector (TCD):
Sensitivity :	S≥3500mv·ml/mg(conventional) 5000mV·ml/mg(highly sensitive)(benzene-toluene solution)
Noise	≤0.01mv
Baseline drift	≤0.03mv/30min
Linear range	≥104
