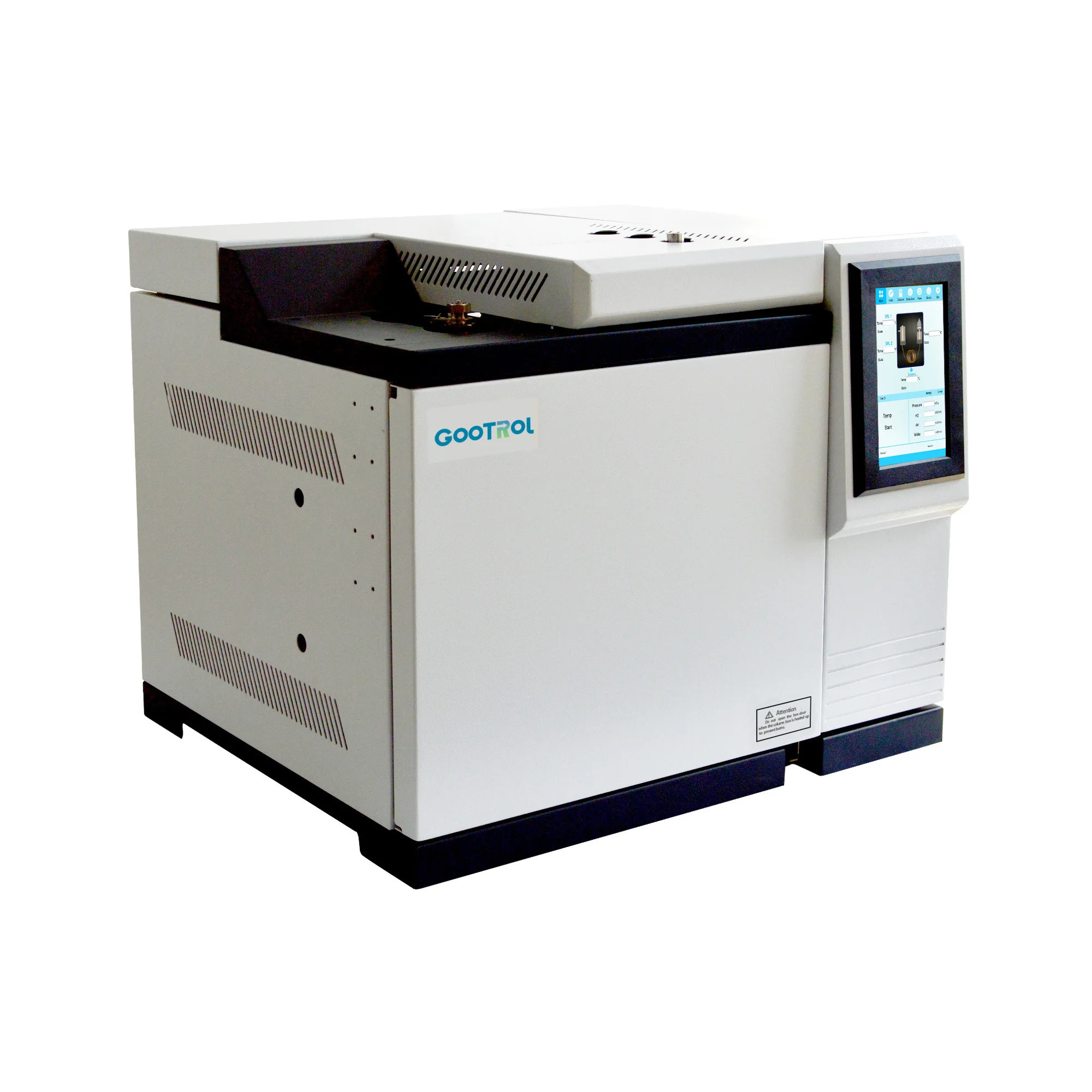

Gas Chromatography Analysis GC 7890 Transformer Oil Analysis Gas Chromatograph Transformer Oil test Equipment

暂无价格
收藏
  • 商品說明
Products Description
Intro：
   The gas chromatograph in transformer oil adopts a three-detector process of single injection, double-column parallel, with TCD detector and two FID detectors, in which H2 and O2 are detected by TCD. Hydrocarbon gases (methane, ethylene, ethane, acetylene)are detected by FID1, and CO and CO2 are detected by FID2, overcoming the influence of CO and CO2 on hydrocarbon gases, especially the influence of acetylene, and the detection limit of acetylene can reach 0.05ppm.



Other attributes：
Customized support
OEM
Place of Origin
Anhui, China
Brand Name
Gootrol
Model Number
GC7890
Operation display
7-inch touchscreen display
Temperature range
Above room temperature 8 ℃ ~ 450 ℃
Accuracy
± 0.1 ℃
Incremental
1 ℃
Cheng Sheng Rate
0.1~40℃/min
Number Of Detector
3; double FID, TCD
Temperature control area
10 channels for temperature control
Hydrogen Flame Ionization Detector (FID)
Detection limit
Mt<5x10-12g/s
Noise
≤5x10-14A
Baseline drift
≤1x10-13A/30min
Linear range
≥106
Ignition mode
automatic ignition
Thermal Conductivity Detector (TCD):
Sensitivity :
S≥3500mv·ml/mg(conventional)
5000mV·ml/mg(highly sensitive)(benzene-toluene solution)
Noise
≤0.01mv
Baseline drift
≤0.03mv/30min
Linear range
≥104
configuration sheet：
Serial Number
Product name
Specifications
Quantity
Remarks
1
Gas chromatograph
7890 GC System Custom
1

2
Fill column injection system
PIP
2

3
Detector
FID
2

4
Detector
TCD
1

5
Chromatographic network counter control workstation
HW-2000 insulating oil network counter-control version
1

6
Stainless steel filled column
TDX-01 1m*3mm
1

7
Stainless steel filled column
GDX-502 4m*3mm
1

8
Hydrogen generator
PMH-300
1

9
Air Generator
PMA-3000
1

10
Multi-function fully automatic oscillator

1

11
Reformer
Methane reformer
1

12
Standard gas
8L 7 components (bottle included)
1

13
Standard gas pressure reducing valve

1

14
High purity nitrogen
40L
1
Own
15
Nitrogen pressure reducing valve

1
16
Computer
W10
1
17
Printer

1

Warm reminder:

Gas generator, multi-function automatic oscillator need to be quoted separately

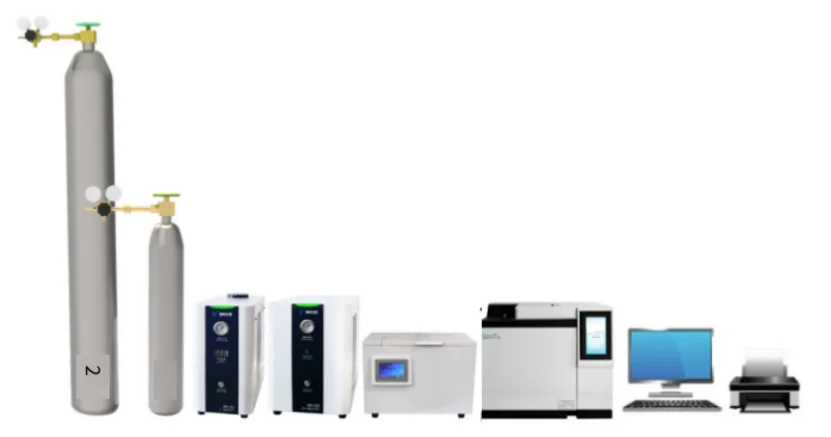

Instrument assembly drawing：

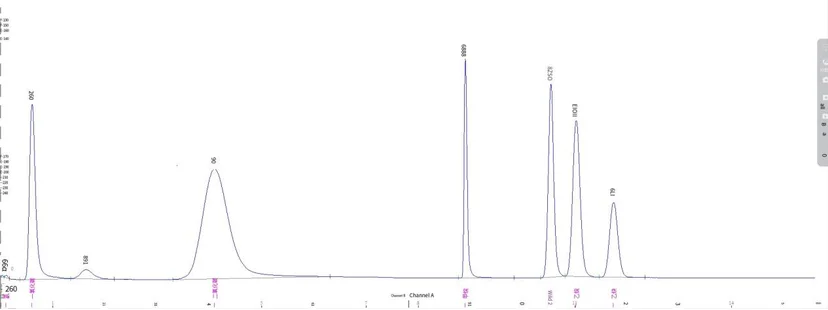

Spectrum analysis：
Flow chart:
